Product details

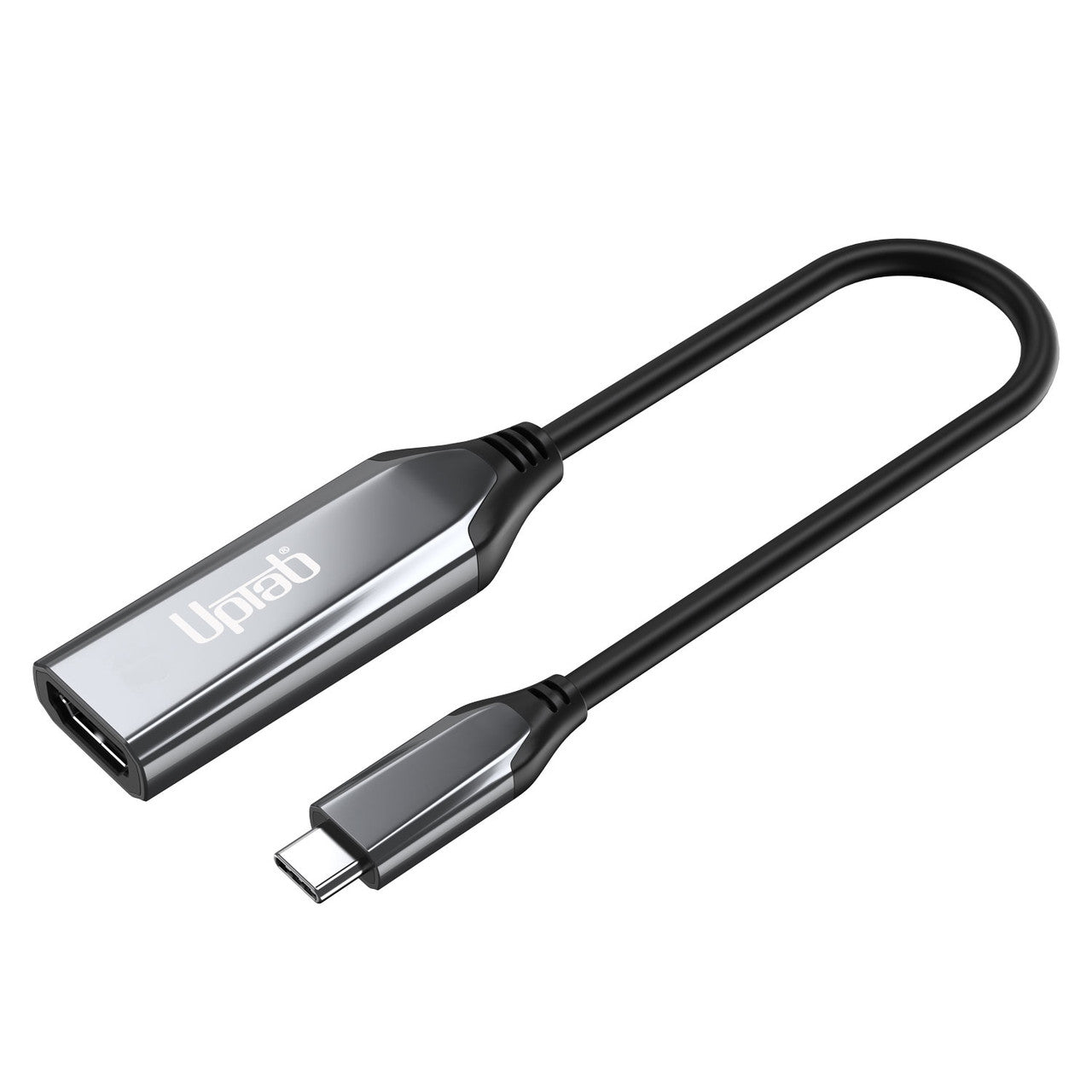

The UPTab USB-C 3.2 (also known as Type-C) to HDMI 2.1 Adapter enables your USB-C and Thunderbolt 3/4 supported computer to connect to an 8K/4K UltraHD display using an Ultra High Definition HDMI 2.1 Port. This adapter is ideal for those engaged in high-level computing, gaming, or graphics by providing the highest performance available. With HDMI 2.1 throughput up to 48Gbps, the USB-C to HDMI 2.1 adapter is ideal for when 8K video, combined with a smooth, 60Hz frame rate and HDR, is desired. Perfect companion for all Apple MacBook, MacBook Pro/Air/iPad Pro, iMac, and new Mac Mini M4.

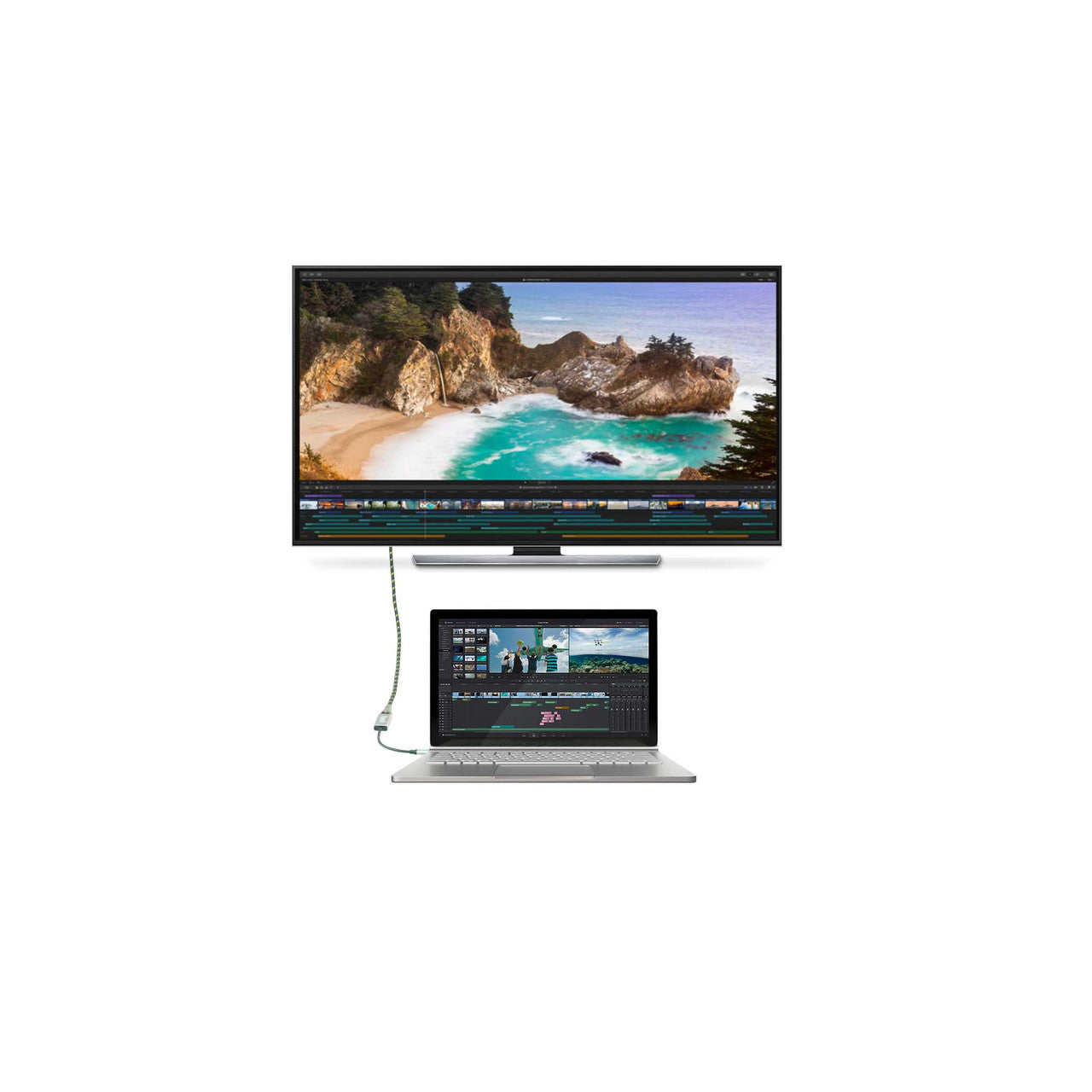

Connect the USB-C end of the connector to your computer and plug your existing HDMI 2.1 cable from the display into the other end of the adapter (HDMI cable sold separately). The adapter converts the USB-C Graphics signal into an HDMI signal at up to UHD 8K 7860x4320 at 60Hz. Support of the 4:4:4 color format. The adapter will enable true RGB color without the visual color degradation that occurs in other color formats that use subsampling. When audio is desired, the USB-C adapter will also transmit up to 8-channel audio for an immersive audio and video experience.
Highlights:
- Ideal for gamers and other high-level computing requirements
- Supports 4:4:4 color format with clear RGB colors
- Audio up to 8-channel audio
- HDMI 2.1 throughout up to 48Gbps
- Small, portable design
- Multi-shielded cable with aluminum body
- Converts DisplayPort video signal at up to UHD 8K 7680×4320@60Hz or 4K 4096x2160@120Hz, including 1440p at 120Hz
Technical Specifications:

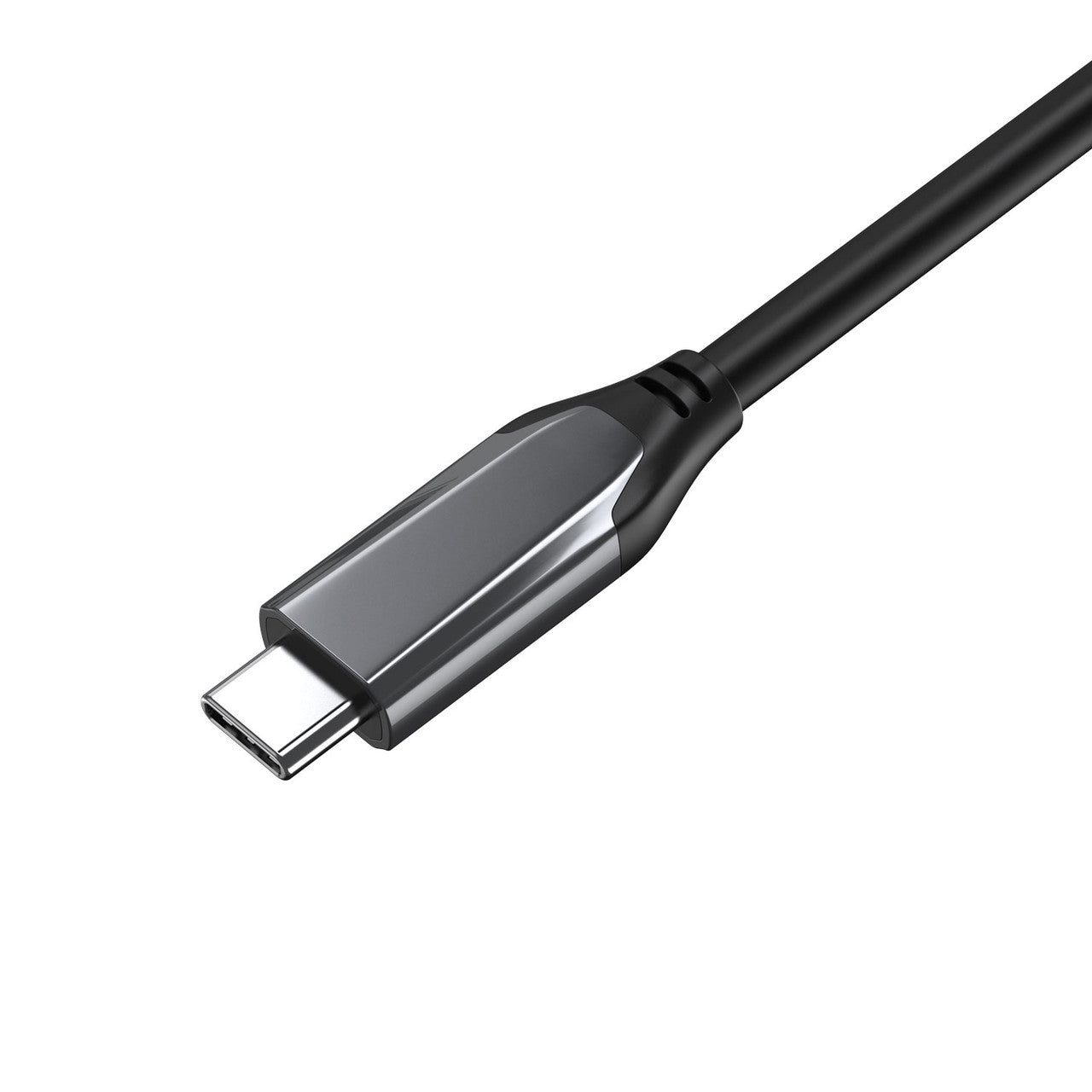

- Input: USB-C (Type C)
- Support 1/2/4 lanes up to HBR3 (8.1-Gbps) input
- Built-in high-performance adaptive equalizer
- Support 1-MHz AUX channel
- Support DSC v1.2a and be backward compatible with the former versions
- Support DSC decoder and pass-through mode
- Support max. resolution/timing up to 8K@60p / 4K@120Hz
- Support CEC over the AUX channel
- Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
- Support HBR audio format up to 2-channel 768KHz
- Support 3D audio format up to 16-channel 96KHz
- Self-powered, no external power required

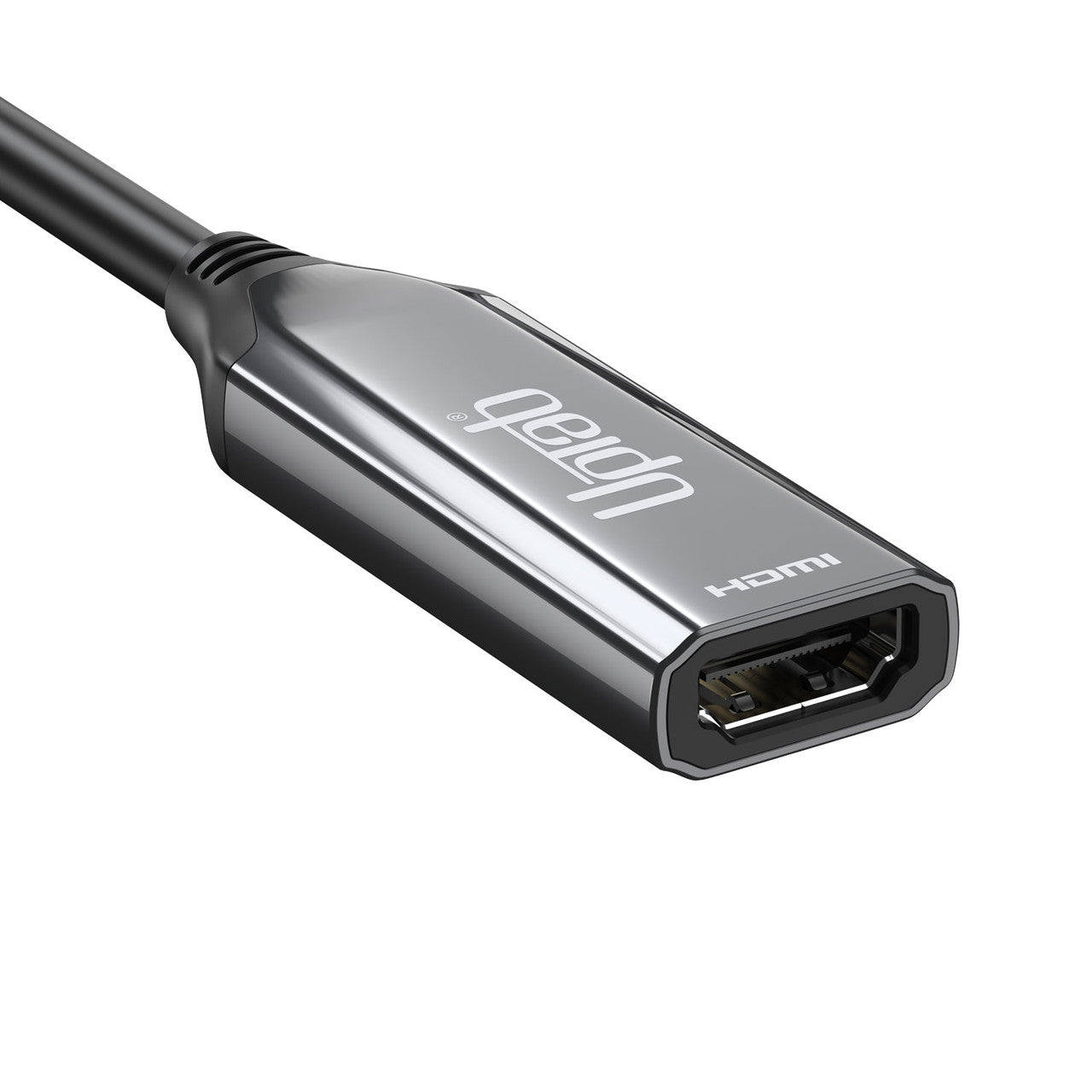

- Output: HDMI 2.1 Female; An Ultra High Speed HDMI 2.1 cable (sold separately) is required
- Support maximum resolution/timing up to 8K@60p / 4K@120Hz with DSC
- HDMI 2.1 compliant transmitter, data rate up to FRL mode up to 12-Gbps per channel and TMDS mode up to 6-Gbps.
- LPCM and Compressed Audio encoding formats
- Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
- Support HBR audio format up to 2-channel 768KHz
- Support 3D audio format up to 16-channel 96KHz. Support DSC v1.2a and backward compatible with the former version
- Support DSC pass-through mode
- Audio stream handling
- Multi-shielded cable
- Aluminum Shell
- Input: USB-C or Thunderbolt 3/4/5 (also known as USB Type-C)
- Output: HDMI Female; An HDMI 2.1 cable (sold separately) is required
- It can only convert the signal from USB-C to HDMI. This is not a bi-directional adapter
